Description

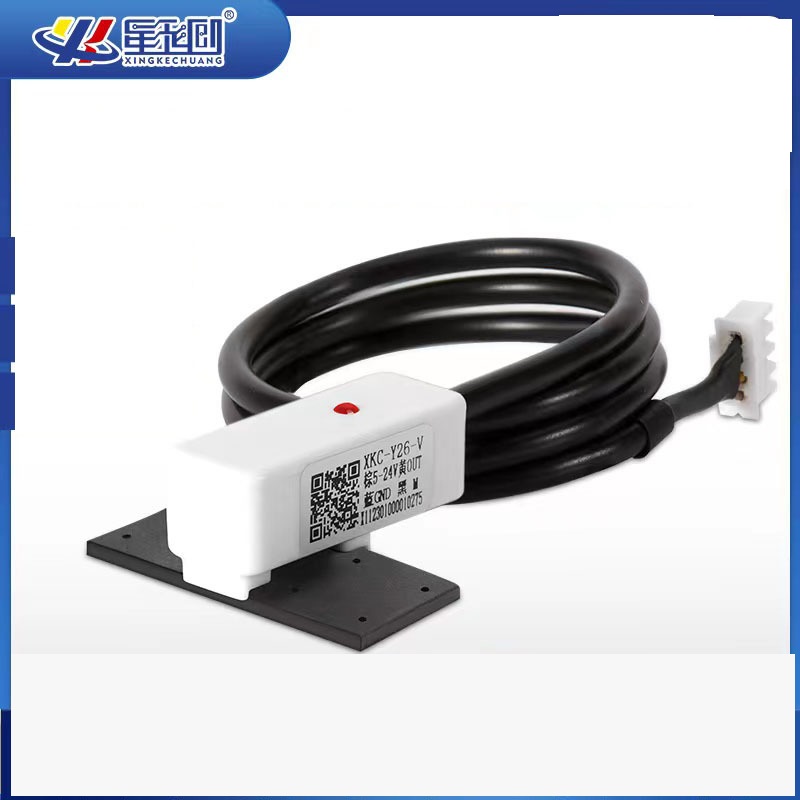

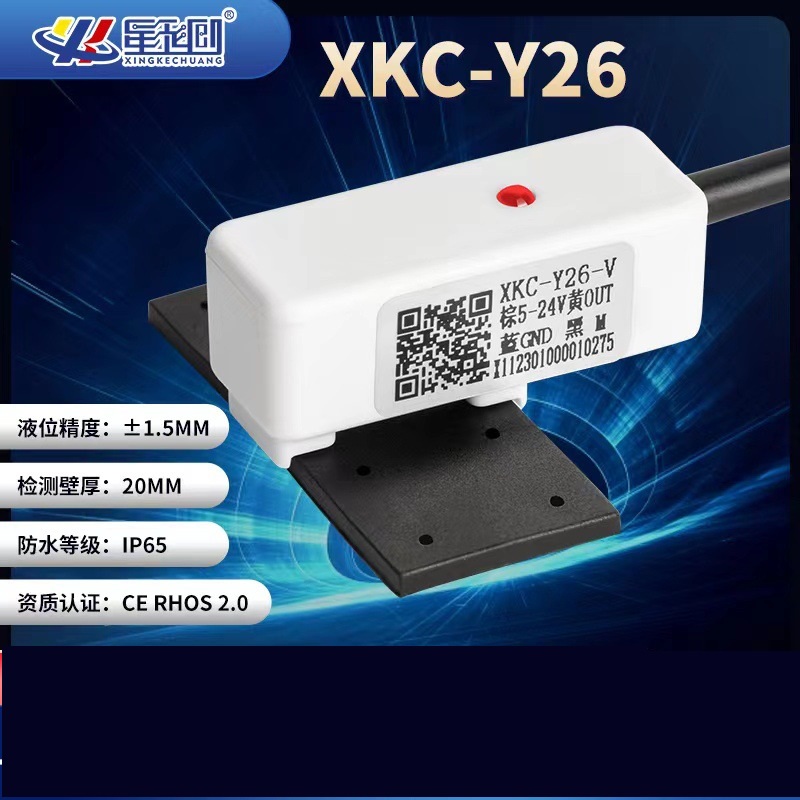

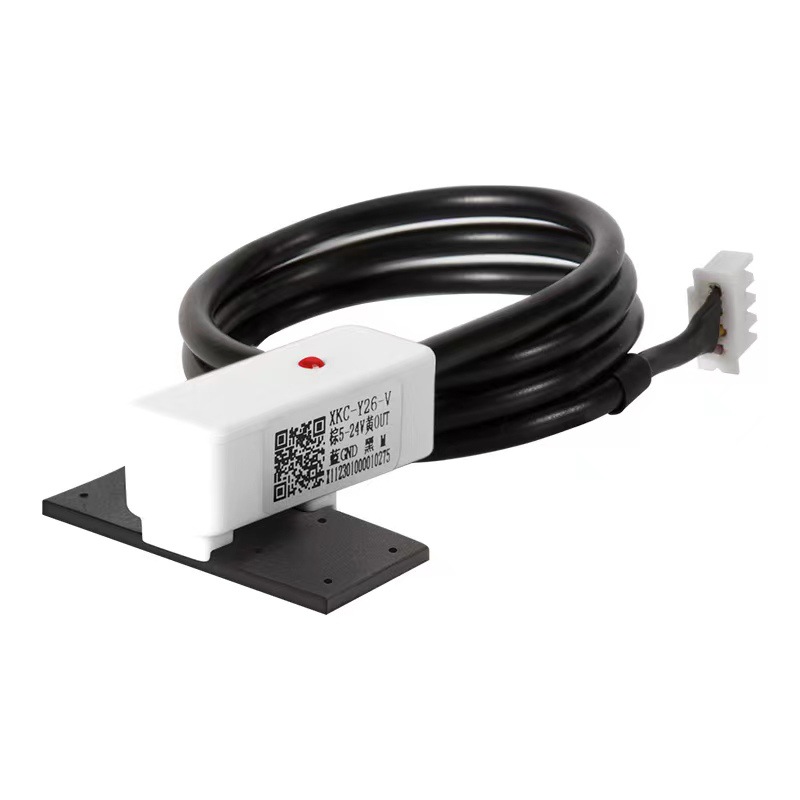

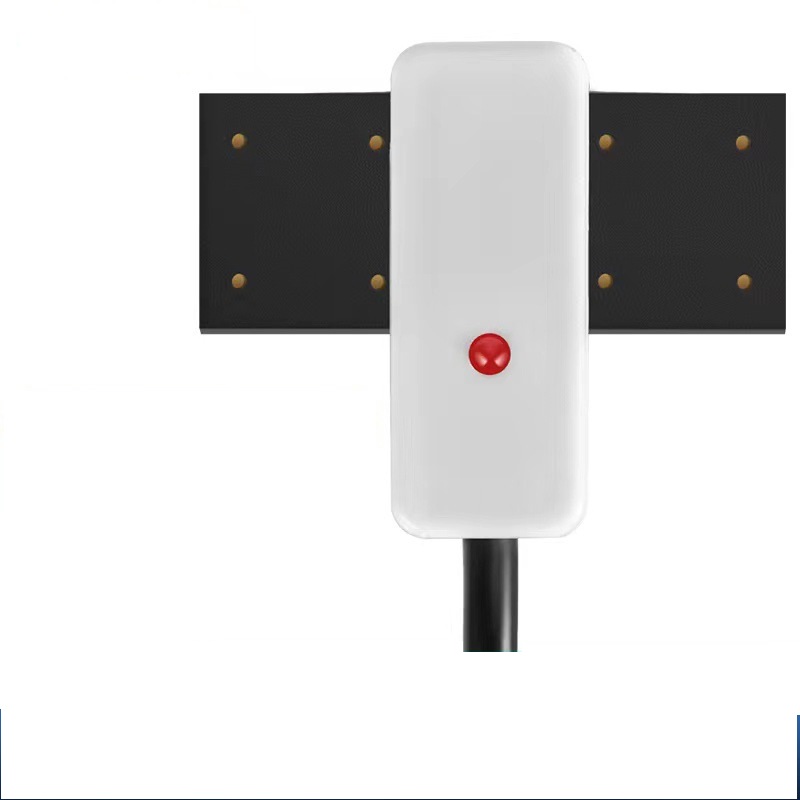

Non-contact Liquid Level Sensor
Model: XKC-Y26-V
Dc input voltage： DC 5-24V
Output voltage： VIN
Response time：500ms

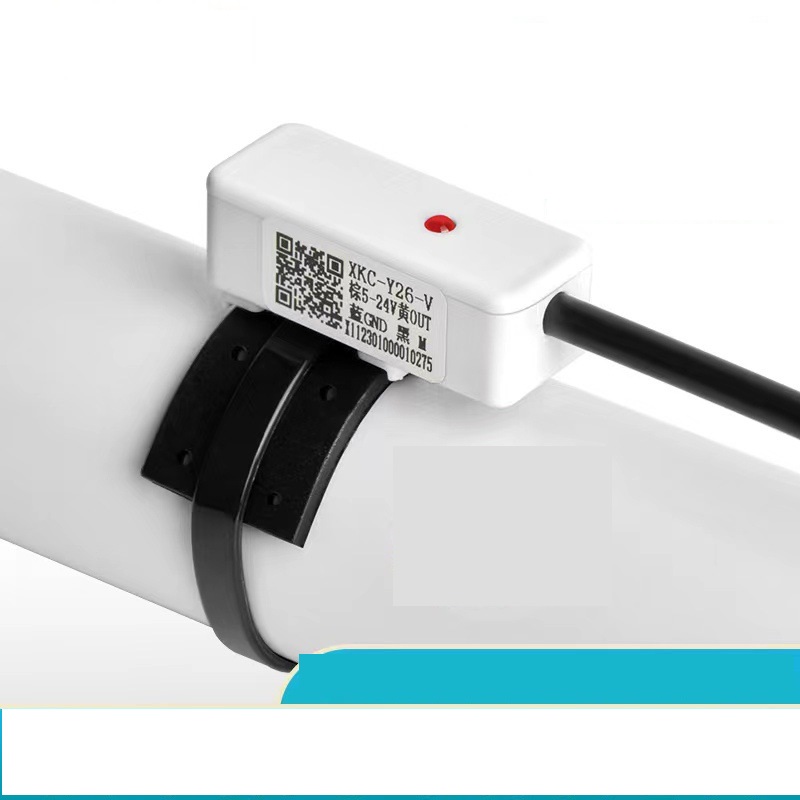

Applicable pipe diameter range：>12mm
Waterproof performance: IP67
Cable Length: 500mm

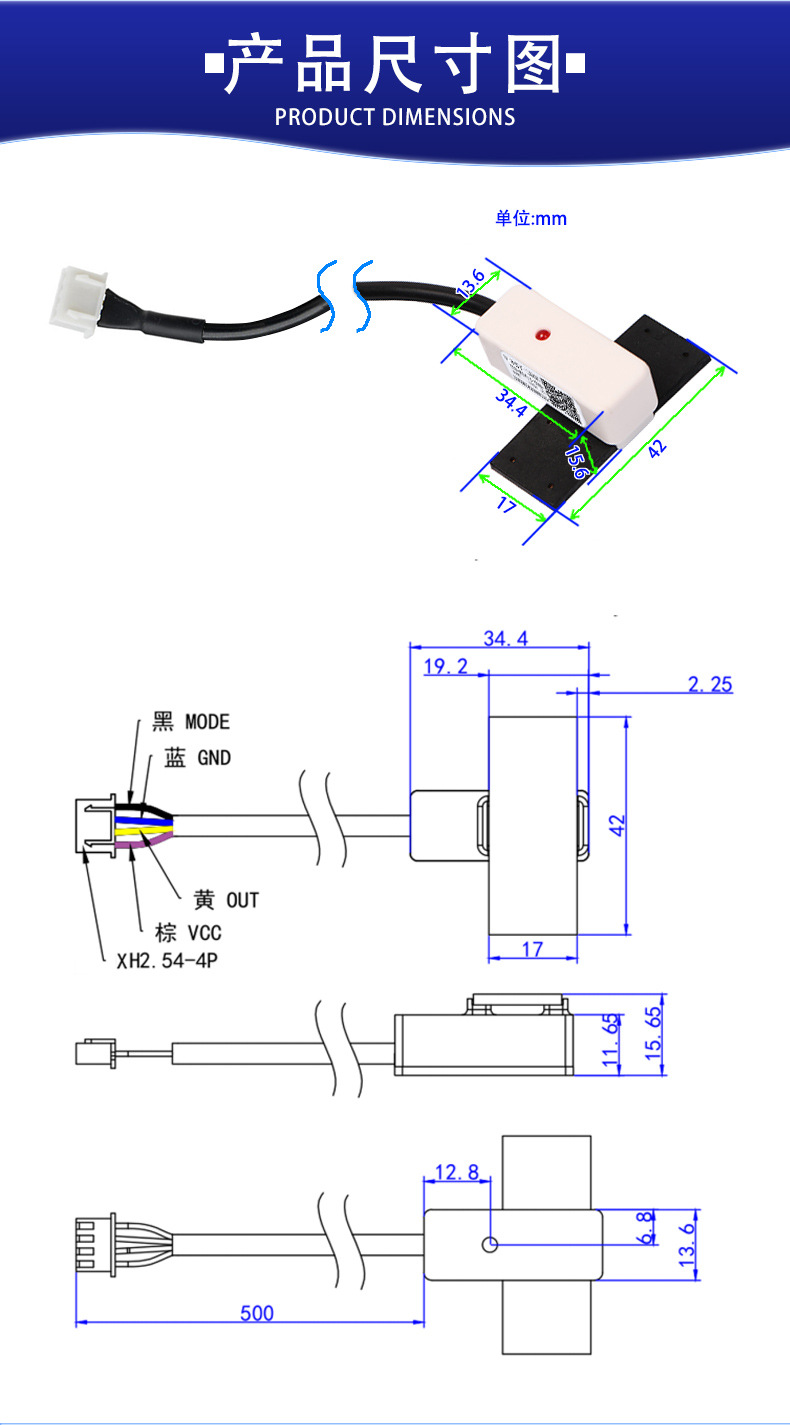

Line end definition:
brown: positive electrode of the power supply; Blue: negative terminal of the power supply
Yellow: signal output Black: signal selection end
